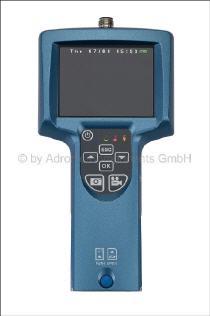

Videoscope V55100

Adrolook Model No ADRO-V55100

The ADRO-V55100 Digital Video Endoscope with 3,5" Color Display, Camera, recorder and LED light source is especially designed for Non-Destructive Testing (NDT) and Remove Vision Inspection (RVI) industry that help user take picture or record video immediately and review picture or video at the same time. Furthermore, the build in memory SD-Card easily can push off from borescope and transfer all data to a PC for back up or for training program purpose or a literature studies even sending data by email. Additional our unique combo borescope has an AV out interface that support direct connect to PC or a TV monitor the resulting gains in operational efficiency

Features

	3.5” Color LCD Display 720x480 pixel
	Support Video recording (MPEG4)
	Support Snapshot (JPEG format)
	Support replay video and image
	Support reflected lens tube allows user to capture positive images when attached a mirror.
	include a 2GB SD card for storing video and image and editing on a PC.
	With 16 operation languages software
	Support AV out (PAL/NTSC selectable)
	Working temperature -20° to 60° (Celsius)
	Power charger indication Light
	Portable battery design allow user to changing battery at any time.
	With USB port (1.1/2.0) allow user transfer data to PC
	Illumination LED light adjustable

Examples

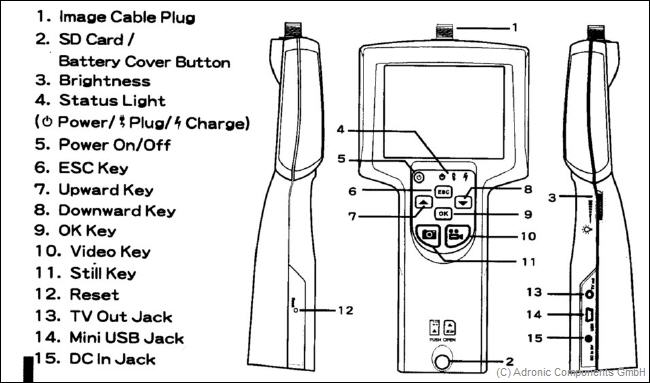

Functions

Technical Details

Diameter (Cable)	4/4,2/5,5/5,8/8/10mm
Ingress Protection	IP 57
Lightning 10mm Probe	6 white LED (850 Lux/8cm)
Lightning 4/5,5mm Cable	4 white LED (275 Lux/1,5-4cm)
Image Sensor	CMOS
Working lengths	1/2/3/5/10/20/30 Meter available
White Balance	fix
Resolution	720x480
Compression Format	MPG4 /saved as AVI
Image Format	JPG-
Exposure	automatic
Frame Rate	30 fps
Direction of vision	0°
Field of view	67°
Depth of Field (DOF)	1cm-8cm depends on Cable
Waterproof (Probe)	yes
Interface	USB / DC In /TV out
Battery	3,7V Li-Ionen-rechargeable
working time	4 hours
Language	16 Different Language

Our Kits Includes

-Video endoscope
-1 GB SD Memory Card
-USB Cabell
-LI-Ionen Battery
-Power Charger 220V/110 V
-Cleaning Tool
-Manual
-Case
