Adrolook TV-Scope
Adrolook Model No ADRO-TV-Scope
The Adrolook TV-Scope is directly connected to a monitor / screen / TV. The probe cable and the lighting
is supplied by a power supply. Cost-effective solution for visual inspection like material testing etc. Other
diameters and exploratory cable lengths on request
 |
 |
Features
- high resolution Camera 720x480 pixel
- -illumination LED-light adjustable
- -low cost system
Technical Details
| Diameter (Cable) | 5,5mm |
| Lightning 5,5mm Cable | 4 white LED (275 Lux/1,5-4cm) |
| Image Sensor | CMOS |
| Working lengths | 1 Meter |
| White Balance | fix |
| Resolution | 720x480 |
| Exposure | automatic |
| Frame Rate | 30 fps |
| Direction of vision | 0° |
| Field of view | 67° |
| Depth of Field (DOF) | 1,5-5cm |
| Waterproof (Probe) | yes |
| Interface | TV out/DC in |

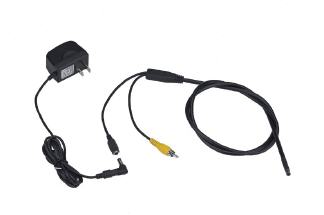

Our Kits Includes
-Video endoscope
-Probe 5,5x1000mm flexible

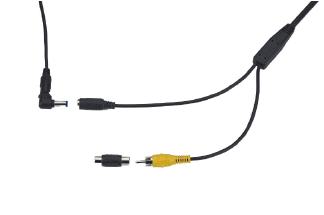

-TV Cable
-Power Supply
