Adrolook USB-Scope
Adrolook Model No ADRO-USB-Scope
The Adrolook USB-Scope is directly connected to the PC or Notebook via USB interface. Pictures and videos can be stored with the included software on the computer. It can be connected to all of our available probes. Diameter of 3.9-25mm and diffrent lengths available. For use a computer is necessary, this is not included.Easy to use ideal for visual inspection.
 |
 |
 |
 |
Features
- Resulution 720x480 pixel
- Support Video recording (MPEG4)
- Support Snapshot (JPEG format)
- Video out Format NTSC & PAL
- Mini USB 1.1/2.0
- Illumination LED light adjustable

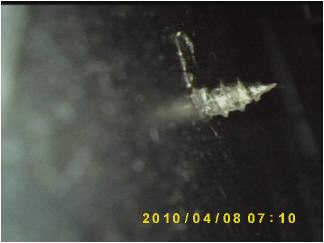

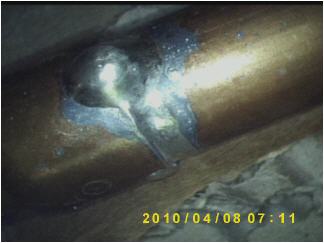

Sample
 |
 |
Technical Details
| Diameter (Cable) | 4/4,2/5,5/5,8/8/10mm |
| Ingress Protection | IP 57 |
| Lightning 10mm Probe | 6 white LED (850 Lux/8cm) |
| Lightning 4/5,5mm Cable | 4 white LED (275 Lux/1,5-4cm) |
| Image Sensor | CMOS |
| Working lengths | 1/2/3/5/10/20/30 Meter available |
| White Balance | fix |
| Resolution | 720x480 |
| Compression Format | MPG4 /saved as ASF |
| Image Format | JPG |
| Exposure | automatic |
| Frame Rate | 30 fps |
| Direction of vision | 0° |
| Field of view | 67° |
| Depth of Field (DOF) | 1cm-8cm depends on Cable |
| Waterproof (Probe) | yes |
| Interface | Mini USB 1.1/2.0 |

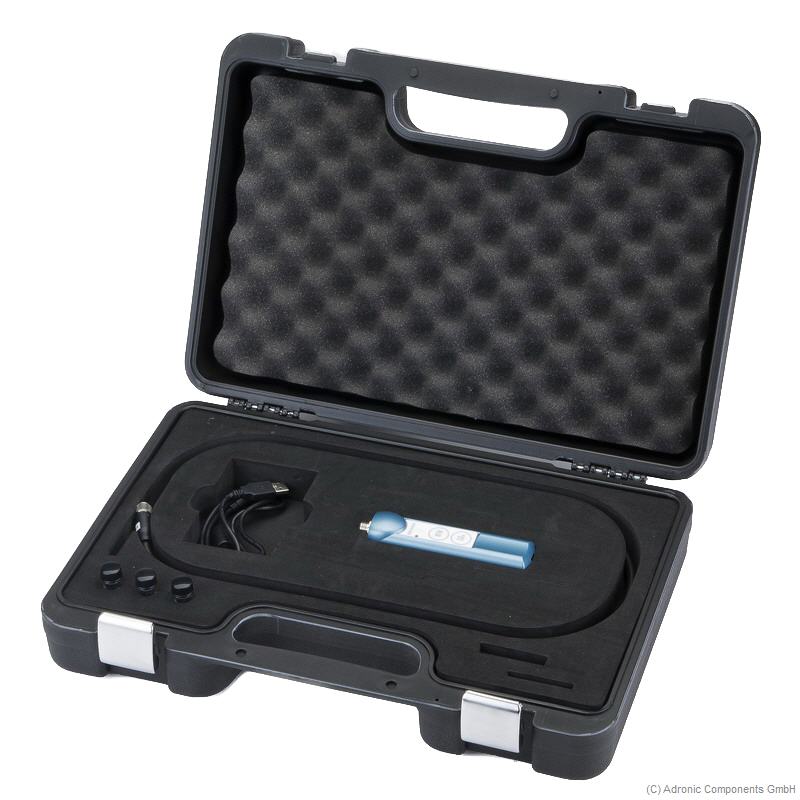

Our Kits Includes
-Video endoscope
-Probe
-USB Cable
-Software
OS: Windows XP, Vista, Windows 7
