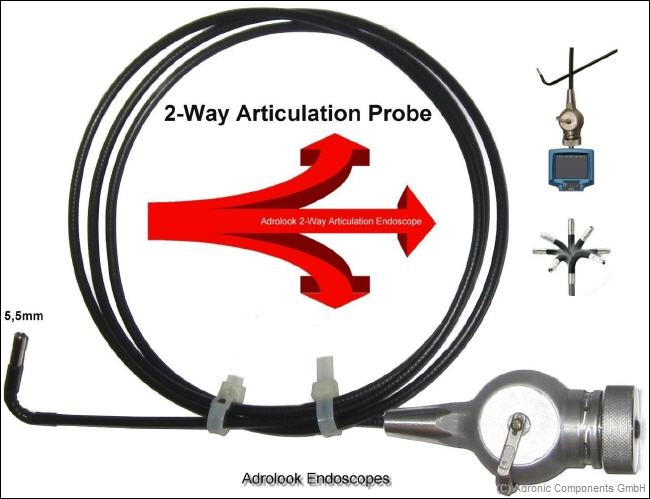

New Articulation Probe
Articulation Probe mounted on the Videoscope 150° Articulation manual tip articulation. Neck with 360°manual rotatable neck Camera : CMOS 300.000 pixel, 60fps@AVGADOF: 1,5-10cm
Insertion Tube & Light Source
 |
Resolution (Dynamic Static) : 720 x 480 pixels, Video 720 x 480 pixels (30 fps), |
|
|
Lens: 300,000 pixels, 60 fps@AVGA, CMOS |
|
|
Size Tip (Insert Tube) Diameter: 5,5mm |
|
|
Tube Length: 1/2/3 Meter |
|
|
Field of View (FOV) : 67° |
|
|
Depth of View (DOV) 1.0cm to infinity |
|
|
Light Source: 4 LED |
|
|
Probe Working Temperature: -20° to 60°C |
|
|
Working temperature -20° to 60° (Celsius) |
|
|
Illumination LED light adjustable |
|
|
Lens able to attached 35°~70° / 45°~90° / 55°~110° Mirror |
|
|
Ingress Protection: IP 57 |
