New Articulation Probe

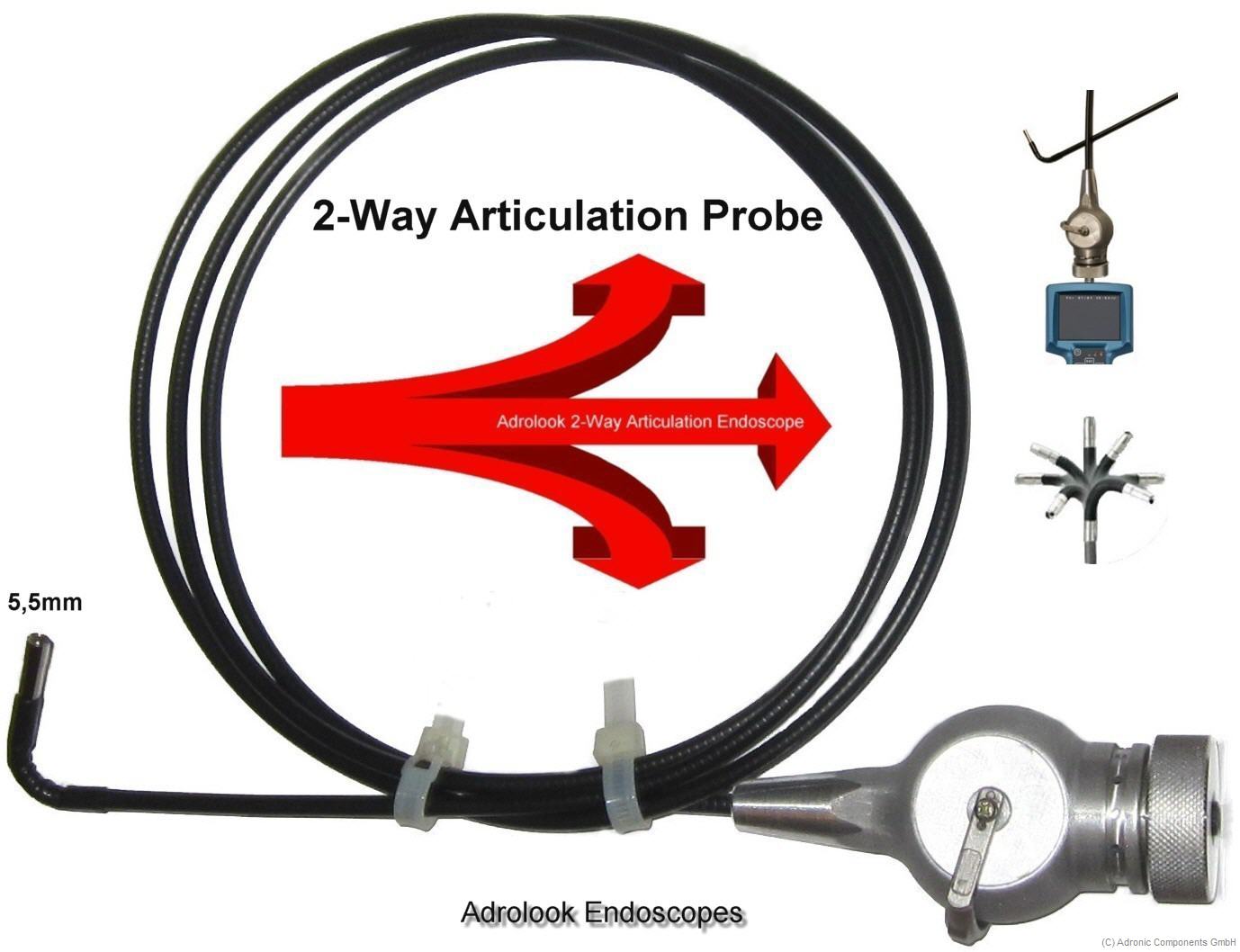

Articulation Probe mounted on the Videoscope 150° Articulation manual tip articulation. Neck with 360°manual rotatable neck Camera : CMOS 300.000 pixel, 60fps@AVGADOF: 1,5-10cm

Insertion Tube & Light Source

  • Resolution (Dynamic Static) : 720 x 480 pixels, Video 720 x 480 pixels (30 fps),
  • Lens: 300,000 pixels, 60 fps@AVGA, CMOS
  • Size Tip (Insert Tube) Diameter: 5,5mm
  • Tube Length: 1/2/3 Meter
  • Field of View (FOV) : 67°
  • Depth of View (DOV) 1.0cm to infinity
  • Light Source: 4 LED
  • Probe Working Temperature: -20° to 60°C
  • Working temperature -20° to 60° (Celsius)
  • Illumination LED light adjustable
  • Lens able to attached 35°~70° / 45°~90° / 55°~110° Mirror
  • Ingress Protection: IP 57
